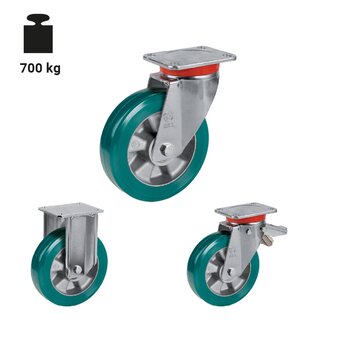

SERIES 62AL

Usos

Product that combines the load capacity and the resistance to wear and tear of the polyurethane with the ability to overcome obstacles and to damp noise, vibrations and impacts of the elastic rubber. Combined with appropriate brackets, they guarantee excellent performance for mechanical handling up to 16 km/h. Excellent rolling resistance.

Características tecnícas

LOAD CAPACITY: 300-800 daN

WHEEL TREAD: green TR-ROLL polyurethane with high thickness, hardness 75 Shore A

CENTRE: aluminium

BRACKETS: NL (standard-duty), M (medium-duty), P (heavy-duty), PT (heavy-duty with hardened ball race grooves), EP (extra heavy-duty), EE MHD (electrowelded), EEG MHD - EEG HD (twin electrowelded), EES MHD (electrowelded sprung loaded)

Ambientes de uso

Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.

Ácidos fracos

Ácidos fortes

Água

Álcool

Weak bases

Strong bases

Hydrocarbons

Solvents

Pisos

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Força de tração ou empuxo para o movimento da roda

Para cada carga e diâmetro, a tabela indica a força (em daN) necessária para empurrar ou puxar uma única roda a uma velocidade constante de 4 km/h em piso liso. Para a movimentação manual de um carrinho de 4 rodas, escolher diâmetros que resultem em valores 5 daN; para movimentação frequente, escolher valores 3 daN.
