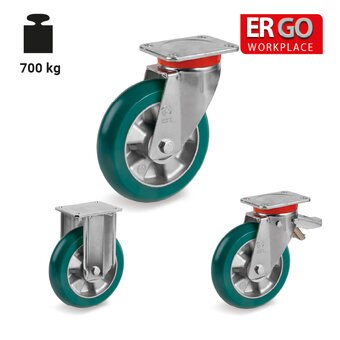

SERIES 62ER

Usos

The round profile reduces the start-up coefficient when the castors are positioned at 90° from the line of movement and therefore reduces the amount of effort required by the operators when handling trolleys.Combined with appropriate brackets they guarantee excellent performance for mechanical handling up to 16 km/h. Typical usage: automotive and lean industries.

Características tecnícas

LOAD CAPACITY: 200-800 daN

WHEEL TREAD: green TR-ROLL polyurethane with high thickness and round profile, hardness 75 shore A

CENTRE: aluminium

BRACKETS: NL (standard-duty), M (medium-duty), P (heavy-duty), PT (heavy-duty with hardened ball race grooves), EP (extra heavy-duty), EE MHD (electrowelded), EEG MHD (twin electrowelded), EES MHD (electrowelded sprung loaded)

Ambientes de uso

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

Ácidos fracos

Ácidos fortes

Água

Álcool

Weak bases

Strong bases

Hydrocarbons

Solvents

Pisos

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Força de tração ou empuxo para o movimento da roda

Para cada carga e diâmetro, a tabela indica a força (em daN) necessária para empurrar ou puxar uma única roda a uma velocidade constante de 4 km/h em piso liso. Para a movimentação manual de um carrinho de 4 rodas, escolher diâmetros que resultem em valores 5 daN; para movimentação frequente, escolher valores 3 daN.
