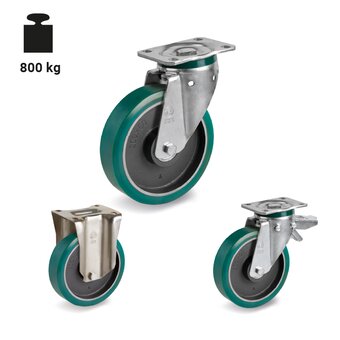

SERIES 62GH

Usos

Product which combines an excellent rolling resistance with the ability to damp down vibrations and overcoming obstacles and very good performance and durability in case of heavy usages and mechanical handling at speeds up to 16 km/h. Examples of Uses: mechanically handled trolleys in automotive industries, logistics, carpentries.

Características tecnícas

LOAD CAPACITY: 800-1700 daN

WHEEL TREAD: green TR-ROLL polyurethane, hardness 75 Shore A

CENTRE: cast iron

BRACKETS: PT (heavy-duty with hardened ball race grooves) ,EP (extra heavy-duty), EE MHD - EE HD - EE EHD (electrowelded), EEG HD - EEG EHD (twin electrowelded), EES MHD (electrowelded sprung loaded)

Ambientes de uso

Designed for industrial environments, even in in the presence of alcohols, glycols, hydrocarbons.Not recommended in areas with organic acids and mineral acids, base solutions and saturated steam. In case of use in aggressive environments, it is possible to use a protective lacker.

Ácidos fracos

Ácidos fortes

Água

Álcool

Weak bases

Strong bases

Hydrocarbons

Solvents

Pisos

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Força de tração ou empuxo para o movimento da roda

Para cada carga e diâmetro, a tabela indica a força (em daN) necessária para empurrar ou puxar uma única roda a uma velocidade constante de 4 km/h em piso liso. Para a movimentação manual de um carrinho de 4 rodas, escolher diâmetros que resultem em valores 5 daN; para movimentação frequente, escolher valores 3 daN.
