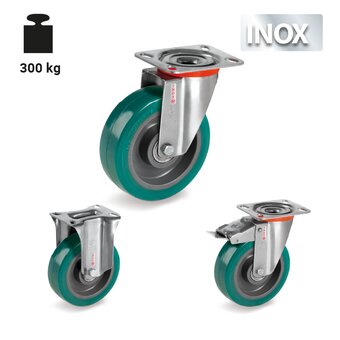

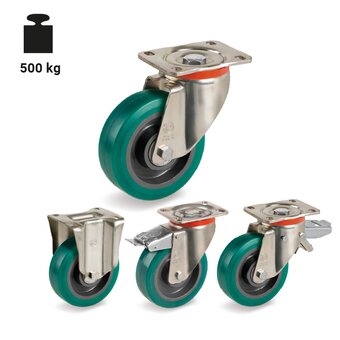

SERIES 62NY

Usos

Excellent for trolleys and equipment handling medium-heavy duty loads, also suitable for continous handling, even in presence of humidity and aggressive chemicals. Suitable for towing applications and manual/mechanical handling up to 6 km/h. The ergonomic round profile variant enables to reduce the start-up effort when pushing/pulling a trolley from a still position.

Características tecnícas

LOAD CAPACITY: 230-500 daN

WHEEL TREAD: green TR-ROLL polyurethane, with high thickness (available with round profile), hardness 75 Shore A

CENTRE: grey polyamide 6

BRACKETS: NL (standard-duty), NLX (stainless steel standard-duty), M (medium-duty), P (heavy-duty), PX (stainless steel medium-heavy)

Ambientes de uso

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

Ácidos fracos

Ácidos fortes

Água

Álcool

Weak bases

Strong bases

Hydrocarbons

Solvents

Pisos

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Força de tração ou empuxo para o movimento da roda

Para cada carga e diâmetro, a tabela indica a força (em daN) necessária para empurrar ou puxar uma única roda a uma velocidade constante de 4 km/h em piso liso. Para a movimentação manual de um carrinho de 4 rodas, escolher diâmetros que resultem em valores 5 daN; para movimentação frequente, escolher valores 3 daN.
