TECHNICAL DATA
Suitable for trolleys with light-duty loads, also in the presence of obstacles and for indoor-outdoor use. Examples of recommended applications: tool trolleys, trolleys for industrial indoor handling, small mobile scaffoldings, waste bin containers.
LOAD CAPACITY: 180-230 daN

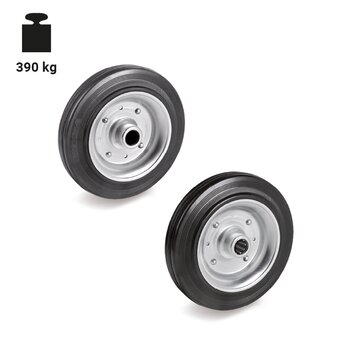

WHEEL TREAD: standard black rubber ring, hardness 80 Shore A
CENTRE: pressed steel discs

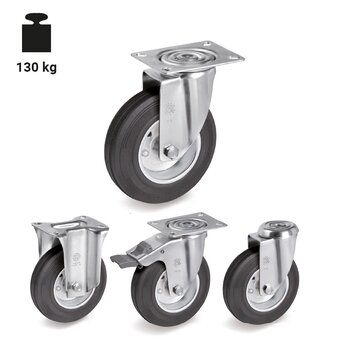

BRACKETS: NL (standard-duty)
Suitable for industrial environments, also in presence of humidity. Not suitable in presence of aggressive chemical agents.
Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor.
Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.
| Diameter | Width | 50 | 100 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|
| 80 | 0 | 5 | |||||
| 125 | 0 | 2,5 | 6 | ||||
| 140 | 0 | 2,2 | 5,5 | 9 | |||
| 150 | 0 | 2 | 5 | 8 | |||
| 160 | 0 | 1,5 | 3,5 | 7,5 | |||
| 180 | 0 | 1 | 3 | 6,1 | |||
| 200 | 0 | 1 | 3 | 5,5 | 8,5 | ||
| 225 | 0 | <1 | 2,1 | 4,8 | 7,5 | 11 | |
| 250 | 0 | <1 | 2 | 4 | 6 | 9 | 12 |
| 280 | 0 | <1 | 2 | 3,5 | 5 | 7 | 9 |
