SERIES 62AL

Uses

Product that combines the load capacity and the resistance to wear and tear of the polyurethane with the ability to overcome obstacles and to damp noise, vibrations and impacts of the elastic rubber. Combined with appropriate brackets, they guarantee excellent performance for mechanical handling up to 16 km/h. Excellent rolling resistance.

Technical features

LOAD CAPACITY: 300-800 daN

WHEEL TREAD: green TR-ROLL polyurethane with high thickness, hardness 75 Shore A

CENTRE: aluminium

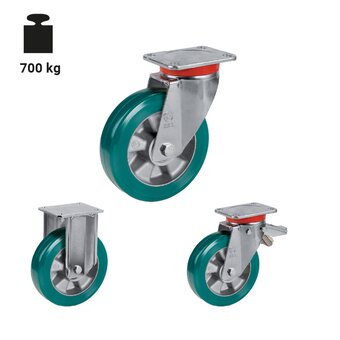

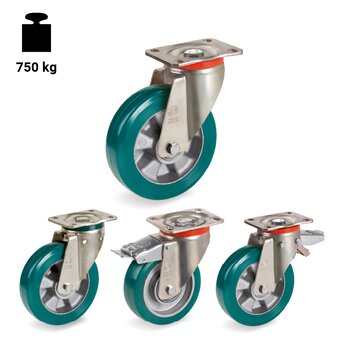

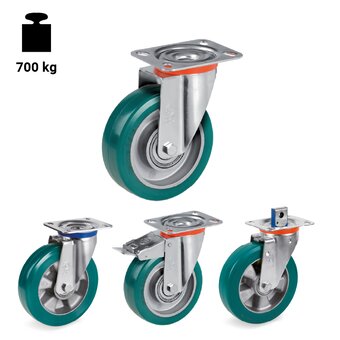

BRACKETS: NL (standard-duty), M (medium-duty), P (heavy-duty), PT (heavy-duty with hardened ball race grooves), EP (extra heavy-duty), EE MHD (electrowelded), EEG MHD - EEG HD (twin electrowelded), EES MHD (electrowelded sprung loaded)

Environments of use

Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
