SERIES 62ER

Uses

The round profile reduces the start-up coefficient when the castors are positioned at 90° from the line of movement and therefore reduces the amount of effort required by the operators when handling trolleys.Combined with appropriate brackets they guarantee excellent performance for mechanical handling up to 16 km/h. Typical usage: automotive and lean industries.

Technical features

LOAD CAPACITY: 200-800 daN

WHEEL TREAD: green TR-ROLL polyurethane with high thickness and round profile, hardness 75 shore A

CENTRE: aluminium

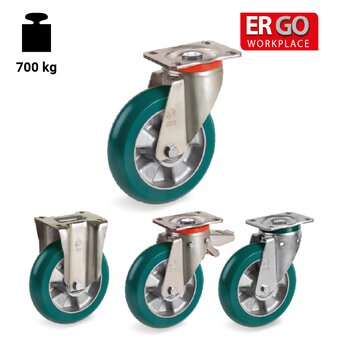

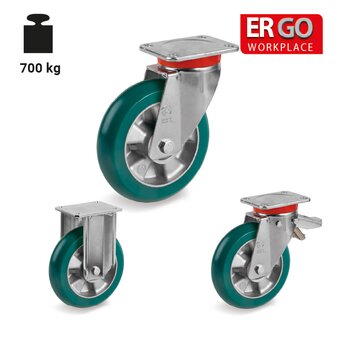

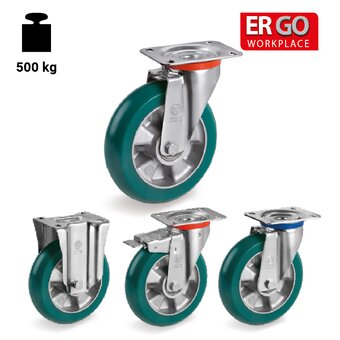

BRACKETS: NL (standard-duty), M (medium-duty), P (heavy-duty), PT (heavy-duty with hardened ball race grooves), EP (extra heavy-duty), EE MHD (electrowelded), EEG MHD (twin electrowelded), EES MHD (electrowelded sprung loaded)

Environments of use

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
