SERIES 62GH

TR-Roll polyurethane wheels, cast iron centre

Technical specifications

TECHNICAL DATA

11 Products,

Items

Sort:

Compare Add more to compare Added

Technical specifications

Uses

Product which combines an excellent rolling resistance with the ability to damp down vibrations and overcoming obstacles and very good performance and durability in case of heavy usages and mechanical handling at speeds up to 16 km/h. Examples of Uses: mechanically handled trolleys in automotive industries, logistics, carpentries.

Technical features

LOAD CAPACITY: 800-1700 daN

WHEEL TREAD: green TR-ROLL polyurethane, hardness 75 Shore A

CENTRE: cast iron

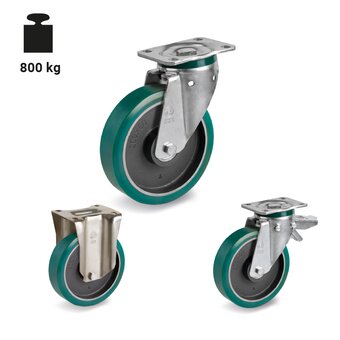

BRACKETS: PT (heavy-duty with hardened ball race grooves) ,EP (extra heavy-duty), EE MHD - EE HD - EE EHD (electrowelded), EEG HD - EEG EHD (twin electrowelded), EES MHD (electrowelded sprung loaded)

Environments of use

Designed for industrial environments, even in in the presence of alcohols, glycols, hydrocarbons.Not recommended in areas with organic acids and mineral acids, base solutions and saturated steam. In case of use in aggressive environments, it is possible to use a protective lacker.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

Diameter	Width	200	400	600	800	1000	1200	1400	1600
200	80	<1	2	3,5	5,5
200	50	<1	2,5	4	6
250	0	<1	1,5	3	5	7	9
300	0	<1	1	2,5	4,5	6	8	10
400	0	<1	<1	1	3	5,5	7	8	10

Diameter	Width	200	400	600	800	1000	1200	1400	1600
200	80	<1	2	3,5	5,5
200	50	<1	2,5	4	6
250	0	<1	1,5	3	5	7	9
300	0	<1	1	2,5	4,5	6	8	10
400	0	<1	<1	1	3	5,5	7	8	10

Diameter	Width	200	400	600	800	1000	1200	1400	1600
200	80	<1	2	3,5	5,5
200	50	<1	2,5	4	6
250	0	<1	1,5	3	5	7	9
300	0	<1	1	2,5	4,5	6	8	10
400	0	<1	<1	1	3	5,5	7	8	10

Diameter	Width	200	400	600	800	1000	1200	1400	1600
200	80	<1	2	3,5	5,5
200	50	<1	2,5	4	6
250	0	<1	1,5	3	5	7	9
300	0	<1	1	2,5	4,5	6	8	10
400	0	<1	<1	1	3	5,5	7	8	10
