SERIES 62NY

Uses

Excellent for trolleys and equipment handling medium-heavy duty loads, also suitable for continous handling, even in presence of humidity and aggressive chemicals. Suitable for towing applications and manual/mechanical handling up to 6 km/h. The ergonomic round profile variant enables to reduce the start-up effort when pushing/pulling a trolley from a still position.

Technical features

LOAD CAPACITY: 230-500 daN

WHEEL TREAD: green TR-ROLL polyurethane, with high thickness (available with round profile), hardness 75 Shore A

CENTRE: grey polyamide 6

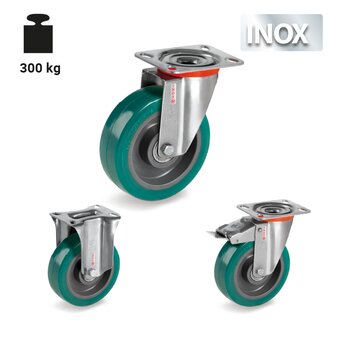

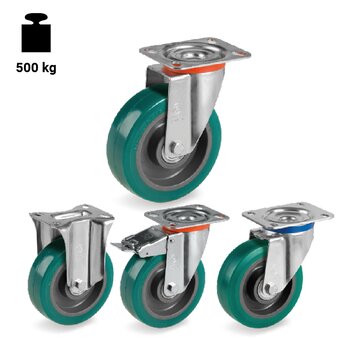

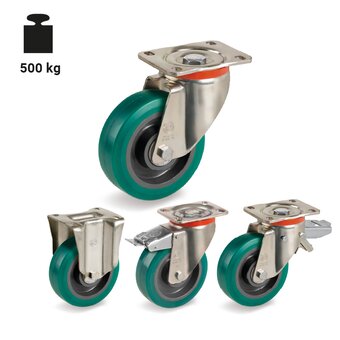

BRACKETS: NL (standard-duty), NLX (stainless steel standard-duty), M (medium-duty), P (heavy-duty), PX (stainless steel medium-heavy)

Environments of use

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
