SERIES 67CC

Uses

Their resistance to high temperature makes them particularly suitable for use in the food industry and in cooking ovens, particularly in the bakeries. They are resistant to medium-harsh chemical agents. Not suitable in presence of obstacles along the path or on delicate flooring.

Technical features

LOAD CAPACITY: 160-240 daN

WHEEL: black thermosetting resin solid wheel, resistant to temperatures from -20 °C to +300 °C

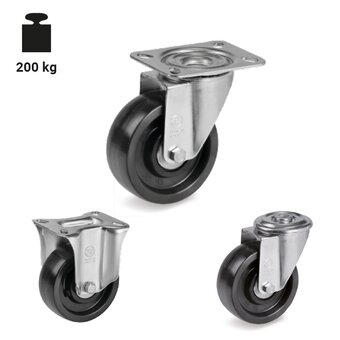

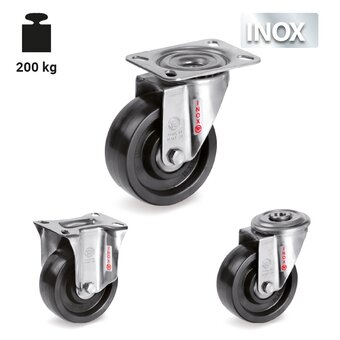

BRACKETS: NL (standard-duty), NLX (stainless steel standard-duty)

Environments of use

Suitable for applications in humid environments, where medium-harsh chemicals are present.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Floors

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
