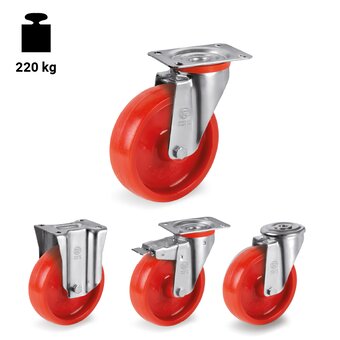

SERIES 68RED

Uses

Intended mainly for static uses, for medium-heavy capacities. The excellent rolling resistance ensures that minimum manual effort is needed in handling, but only on smooth floors. Examples of recommended applications: trolleys for internal use in the food and canning industries, tannery equipment, flower trolleys, manual pallet trucks, mobile scaffoldings.

Technical features

LOAD CAPACITY: 180-220 daN

WHEEL: solid polyamide 6 red wheel

BRACKETS: NL (standard-duty)

Designed for industrial environments, even in presence of aggressive chemical substances. Not recommended in areas with strong organic acids and concentrated mineral acids.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Suitable only for smooth and compact floors. Not suited for areas with obstacles.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
