TECHNICAL DATA

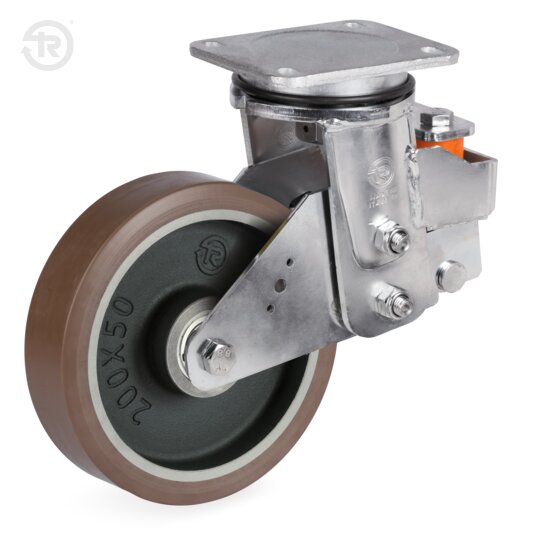

TR-PowerHigh polyurethane tread, cast iron centre
TR-PowerHigh polyurethane tread; hardness 92 +/-3 Shore A. Cast iron centre.
Bracket with; - Top plate: electrolytically galvanised forged steel with integrated pin. - Main fork: deep-drawn legs electrowelded to the flange and electrolitiÂcally galvanised U-shaped component electrowelded to the legs. - Swivel actions: axial ball bearing and tapered roller bearing - Spring-hinged plates: plates electrowelded to the axle - Polyurethane springs - Grease nipple - Anti-loosening locknut system
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
| Diameter | Width | 150 | 300 | 450 | 600 | 1000 | 1500 | 2000 | 2800 |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 0 | 4 | 10 | ||||||
| 100 | 0 | 3,4 | 7 | ||||||
| 125 | 60 | 3 | 5,8 | 9,9 | 12,5 | ||||
| 125 | 50 | 3 | 5,8 | 9,9 | |||||
| 125 | 38 | 3,1 | 6 | 10,3 | |||||
| 140 | 54 | 3 | 5,8 | 9,9 | 12,5 | ||||
| 150 | 54 | 2,2 | 4,7 | 7,7 | 11,3 | ||||
| 150 | 50 | 2,2 | 4,7 | 7,7 | 11,3 | ||||
| 160 | 50 | 2 | 4,5 | 7,4 | 10,8 | ||||
| 200 | 80 | 1,1 | 3,1 | 4,5 | 6 | 10,3 | 15,3 | ||
| 200 | 50 | 1,5 | 3,4 | 5,4 | 7,6 | 14,4 | |||
| 250 | 80 | <1 | 2,2 | 4 | 5,4 | 9,2 | 14 | ||
| 250 | 60 | <1 | 2,7 | 4,2 | 5,6 | 9,8 | 14,4 | ||
| 300 | 100 | <1 | 1,3 | 3,1 | 4,5 | 7,7 | 11,7 | 14,4 | |
| 300 | 80 | <1 | 1,3 | 3,1 | 4,5 | 7,7 | 11,7 | 14,4 | |
| 300 | 60 | <1 | 2,5 | 4,5 | 6 | 10,3 | 15,5 | ||
| 400 | 100 | <1 | <1 | 1,8 | 2,9 | 6,1 | 9,9 | 11,7 | 18,9 |
