Wheels and castors for food processing industries
Wheels, castors and accessories for trolleys used in internal industrial logistics
Castors for scaffoldings
Rollers, drive wheels and stabilizer wheels for pallet trucks
Compact castors for AGVs, AMRs and robotic systems
TECHNICAL DATA
Thermoplastic polyurethane tread, polyamide 6 centre
Injection polyurethane tread, hardness 55 Shore D. Polyammide 6 centre.

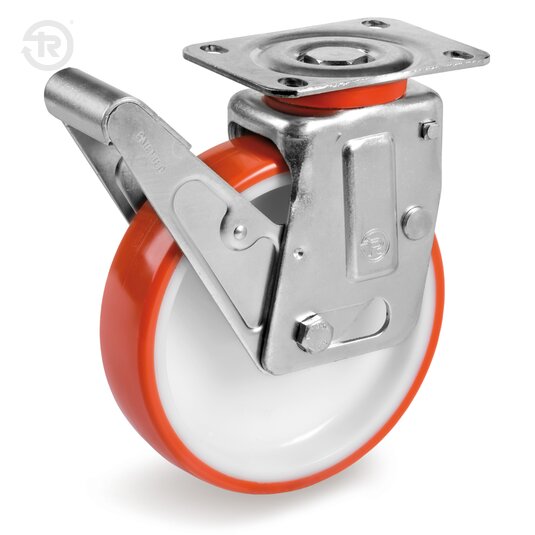

Swivel top plate bracket for mobile scaffoldings. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish. In brackets for wheels diameter 200, the swivel actions are made of a single direction axial bearing and a grease-lubricated single ball raceway. In brackets for wheels diameter 150, the swivel actions are made of a grease-lubricated double ball raceways. Dust protection seal made of orange polyamide 6. The king pin is bracket for a steel pin and cold-headed nut.
Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 0 | 4,5 | |||||||
| 100 | 0 | 2,2 | 4,5 | ||||||
| 125 | 0 | 1,2 | 2,2 | 4 | |||||
| 150 | 45 | <1 | 2 | 3,2 | 4,5 | 6 | 9 | ||
| 150 | 35 | <1 | 2 | 3,2 | 5 | ||||
| 200 | 0 | <1 | <1 | <1 | 2,5 | 3 | 4 | 5,5 | 7 |
