TR-61CC-W

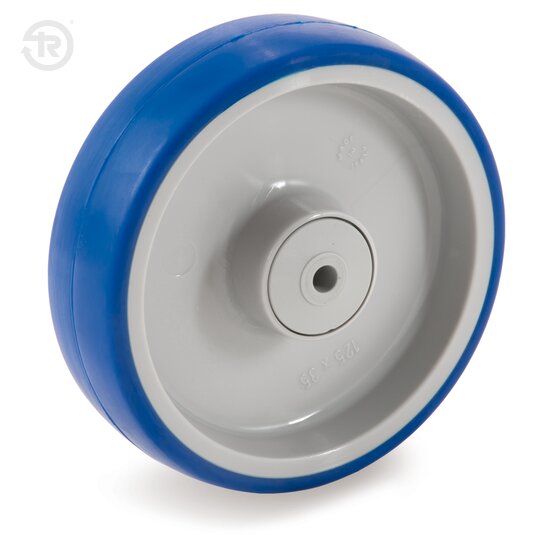

Soft thermoplastic polyurethane wheels

Without bracket, polyamide 6 centre, with ball bearings and stainless steel ball bearings

Technical specifications

Scroll horizontally

Wheel description
Environments of use
Floors
Force required to push or tow a wheel

Wheel description

Thermoplastic polyurethane tread; hardness 85 Shore A. Thermoplastic centre.

Environments of use

Suitable for environments where atmospheric agents, alcohol, glycol, mineral and organic acids, base solutions and saturated vapour are present.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Floors

Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

Diameter	Width	50	100	150	200	250	300
80	0	3,4
100	0	1,5	4
125	0	1	2,5	4
150	45	<1	1,3	2,3	2,5	2,8
160	0	<1	1,3	1,7	2,2	3,3
200	0	<1	<1	1,6	2,5	3,7	5
