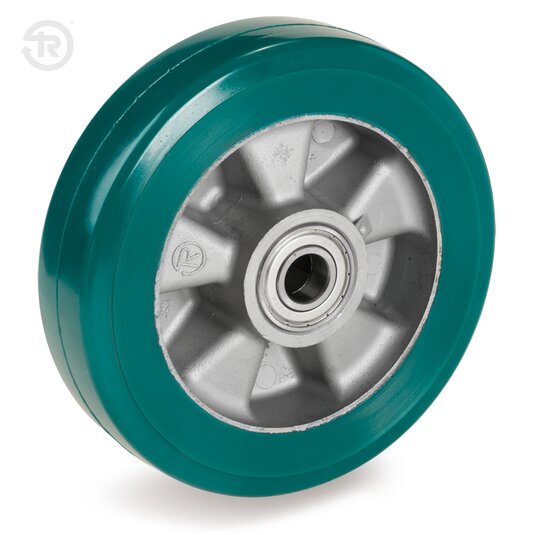

TR-62-W

TR-Roll polyurethane wheels, high thickness

Without bracket, aluminium centre, with ball bearings and ball bearing seat

Technical specifications

Scroll horizontally

Wheel description
Environments of use
Floors
Force required to push or tow a wheel

Wheel description

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast aluminium.

Environments of use

Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.

Weak acids

Strong acids

Water

Alcohol

Weak bases

Strong bases

Hydrocarbons

Solvents

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

Asphalt

Cement Resin

Expanded Metal

With Obstacles

Tile

Not Paved

With Chips

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.

Diameter	150	250	350	450	550	700
100	2,5	4
125	1,8	3,2	5
160	1,4	2,8	3,5	4,2	5
180	<1	2	3,2	4,2	4,7
200	<1	1,5	2,8	3,7	4,3	5
250	<1	1,3	2,5	3,7	4,3	5
