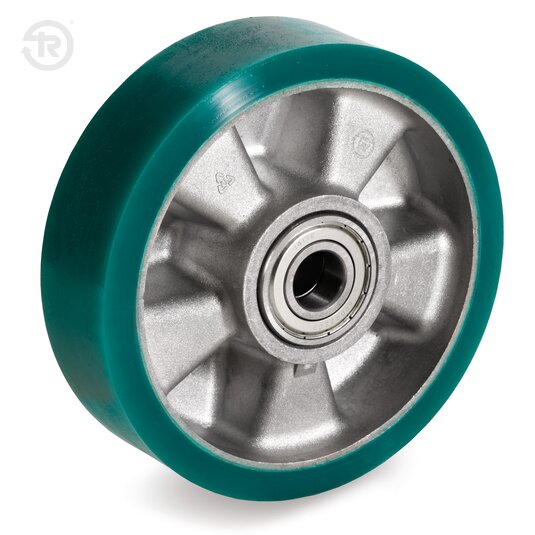

TR-62BS-W

TR-Roll polyurethane wheels

Without bracket, aluminium centre, with ball bearings and ball bearing seats



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast aluminium.

Environments of use

Environments of use

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

giallo
Weak acids
rosso
Strong acids
giallo
Water
verde
Alcohol
giallo
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for tiles, cement-resin, asphalt and expanded metal. Not suitable on unpaved floors and/or in case large obstacles are present.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth150250350450550700
8002,5
10002,2
125012,3
1500<11,72,73,8
1600<11,42,33,54,9
2000<11,21,82,63,44,6
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
