TECHNICAL DATA

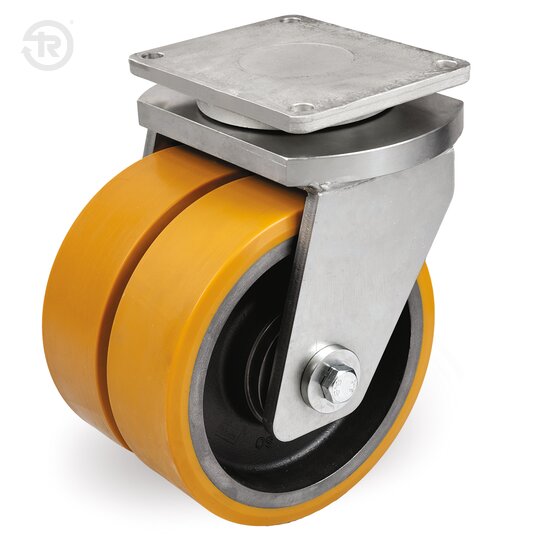

TR polyurethane tread, cast iron centre
TR polyurethane tread; hardness 92 +/-3 Shore A. Cast iron centre.
Swivel top plate bracket with a plate made of forged steel with integrated pin, a fork with two drawn sides electrowelded to the flange, swivel actions made of an axial ball bearing an a taper roller bearing, lubricator and nut anti-loosening system.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
| Diameter | Width | 150 | 300 | 450 | 600 | 1000 | 1500 | 2000 | 2800 |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 0 | 4,5 | 11 | ||||||
| 100 | 0 | 3,8 | 7,7 | ||||||
| 125 | 60 | 3,3 | 6,5 | 11 | 14 | ||||
| 125 | 38 | 3,5 | 7 | 11,5 | |||||
| 125 | 50 | 3,3 | 6,5 | 11 | |||||
| 150 | 60 | 2 | 4 | 8 | 11 | ||||
| 150 | 80 | 1,8 | 3,5 | 6 | 10,5 | 18 | |||
| 150 | 50 | 2,5 | 5,2 | 8,6 | 12,6 | ||||
| 160 | 50 | 2,3 | 5 | 8,3 | 12 | ||||
| 180 | 50 | 2 | 4,1 | 6,8 | 9,7 | ||||
| 200 | 50 | 1,7 | 3,8 | 6 | 8,5 | 16 | |||
| 200 | 80 | 1,3 | 3,5 | 5 | 6,7 | 11,5 | 17 | ||
| 250 | 60 | 1 | 3 | 4,7 | 6,3 | 10,9 | 16 | ||
| 250 | 80 | <1 | 2,5 | 4,5 | 6 | 10,3 | 15,5 | ||
| 300 | 60 | <1 | 2 | 4 | 5,5 | 9,6 | 15 | ||
| 300 | 80 | <1 | 1,5 | 3,5 | 5 | 8,6 | 13 | 16 | |
| 400 | 100 | <1 | <1 | 2 | 3,2 | 6,8 | 11 | 13 | 21 |
The directional lock for EEG EHD brackets is designed to prevent the bracket from rotating, by using a pin. It can be purchased either pre-fitted to the castor (with the suffix DL) or separately (part number 401230).
It can only be fitted to Tellure Rota brackets designed to accommodate the device.
