TECHNICAL DATA
Monolithic wheels in polyamide 6

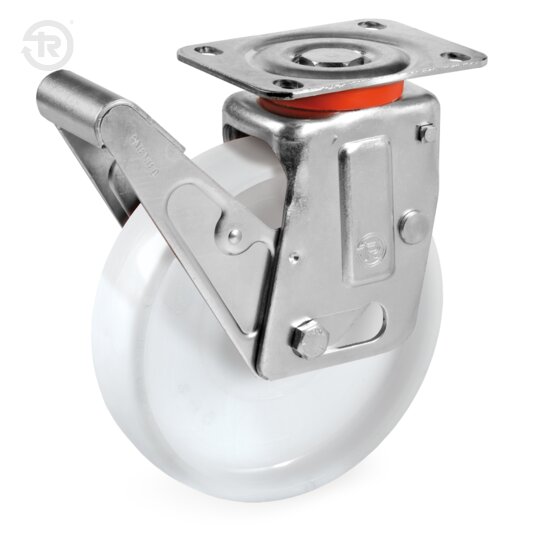

Swivel top plate bracket for mobile scaffoldings. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish. In brackets for wheels diameter 200, the swivel actions are made of a single direction axial bearing and a grease-lubricated single ball raceway. In brackets for wheels diameter 150, the swivel actions are made of a grease-lubricated double ball raceways. Dust protection seal made of orange polyamide 6. The king pin is bracket for a steel pin and cold-headed nut.
Designed for industrial environments, even in presence of aggressive chemical substances. Not recommended in areas with strong organic acids and concentrated mineral acids.
Suitable only for smooth and compact floors. Not suited for areas with obstacles.
Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.
| Diameter | Width | 100 | 200 | 300 | 400 | 500 | 700 | 1000 | 1200 |
|---|---|---|---|---|---|---|---|---|---|
| 65 | 0 | 5,5 | |||||||
| 80 | 0 | 4 | |||||||
| 100 | 0 | 3,5 | 6 | 9 | |||||
| 125 | 0 | 2,5 | 5 | 6 | 8 | ||||
| 150 | 0 | 1 | 2,5 | 6 | 8 | 10 | |||
| 175 | 0 | <1 | 2 | 5,5 | 7 | 9 | |||
| 200 | 0 | <1 | 1,8 | 4,7 | 5,8 | 6,5 | 7,8 | ||
| 250 | 0 | <1 | 1,5 | 4 | 4,5 | 6 | 8 | 12 | 16 |
