TECHNICAL DATA
Monolithic wheels in polyamide 6

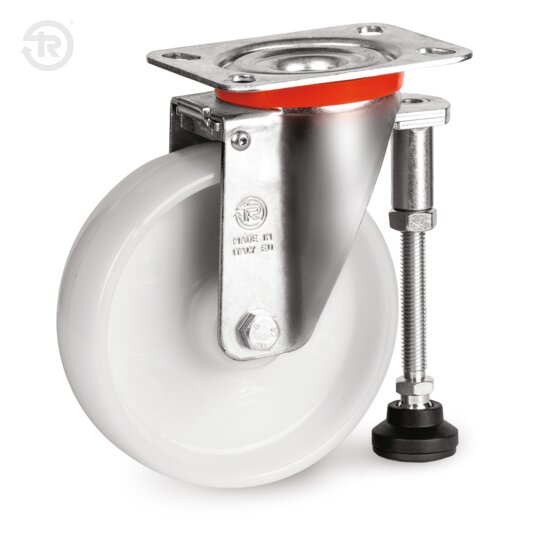

The plate, the ball race ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted. Levelling foot consisting of an electro-galvanized steel sheet plate fixed to the fork, a stem facility welded to the sheet plate, a threaded stem in electro-galvanized steel, and a plastic base with hardness anti-slip pad, mounted at the bottom of the stem.
Designed for industrial environments, even in presence of aggressive chemical substances. Not recommended in areas with strong organic acids and concentrated mineral acids.
Suitable only for smooth and compact floors. Not suited for areas with obstacles.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 200 | 300 | 400 | 500 | 700 | 1000 | 1200 |
|---|---|---|---|---|---|---|---|---|---|
| 65 | 0 | 5,5 | |||||||
| 80 | 0 | 4 | |||||||
| 100 | 0 | 3,5 | 6 | 9 | |||||
| 125 | 0 | 2,5 | 5 | 6 | 8 | ||||
| 150 | 0 | 1 | 2,5 | 6 | 8 | 10 | |||
| 175 | 0 | <1 | 2 | 5,5 | 7 | 9 | |||
| 200 | 0 | <1 | 1,8 | 4,7 | 5,8 | 6,5 | 7,8 | ||
| 250 | 0 | <1 | 1,5 | 4 | 4,5 | 6 | 8 | 12 | 16 |
