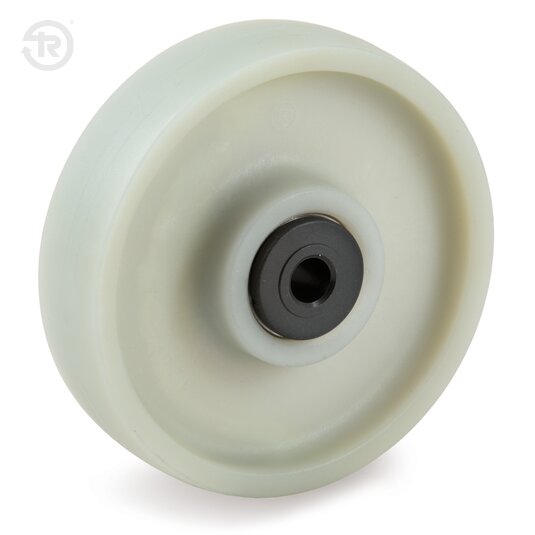

TR-68FV-W

Polyamide 6 solid wheels

Without bracket, with ball bearings and ball bearing seat



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Monolithic wheels in polyamide 6 charged with glass fiber

Environments of use

Environments of use

Suitable for industrial and institutional environments, also in presence of humidity and chemical agents.

verde
Weak acids
giallo
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
giallo
Strong bases
verde
Hydrocarbons
giallo
Solvents
Floors

Floors

Suitable only for smooth and compact floors. Not suited for areas with obstacles.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth100150200250300350
1000<11,21,52
1250<1<11,11,51,82,2
