TR-76-P

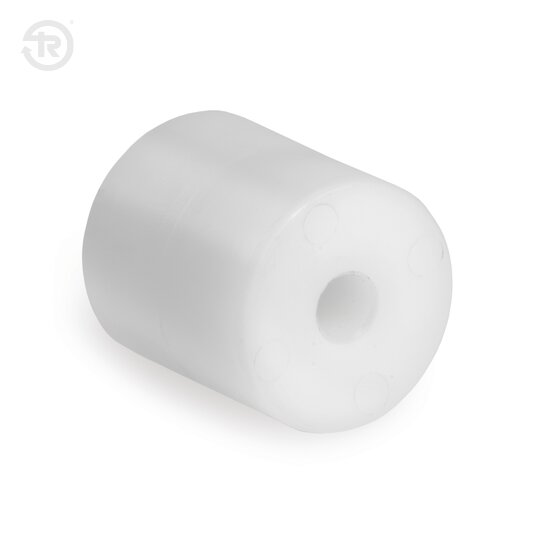

Polyamide 6 solid pallet truck rollers

With plain bore



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Polyamide 6 solid transpallet roller.

Environments of use

Environments of use

Suitable for industrial environments, also in presence of humidity and chemical agents. Not recommended in areas with strong organic acids and concentrated mineral acids.

verde
Weak acids
giallo
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
giallo
Strong bases
verde
Hydrocarbons
giallo
Solvents
Floors

Floors

Suitable only for smooth and compact floors. Not suited for areas with obstacles.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een ​​enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

DiameterWidth1002003005006008001000
82100<11,72,655,57,59,7
82701,22,53,86,57,910,8
8290<11,92,95,568,410,8
82601,22,64,578,7
