TR-77-R

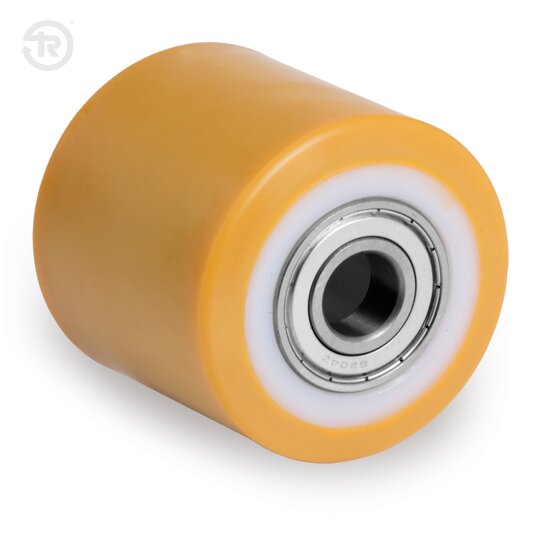

TR polyurethane pallet truck rollers

Polyamide 6 centre, with ball bearings and ball bearing seat



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

TR polyurethane tread; hardness 92+/-2 Shore A. Polyamide 6 centre.

Environments of use

Environments of use

Designed for industrial environments, even in presence of medium-harsh chemical agents. Not recommended in areas with strong organic acids and mineral acids.

verde
Weak acids
rosso
Strong acids
verde
Water
verde
Alcohol
verde
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth100200300400500600
82701,12,757,8
82100<11,93,55,47,810,5
8290<12,146,69,7
8570<12,54,77,611
8590<12,346811
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
