DADOS TÉCNICOS
Revestimento de poliuretano termoplástico, núcleo de poliamida 6
Injection polyurethane tread, hardness 55 Shore D. Polyammide 6 centre.

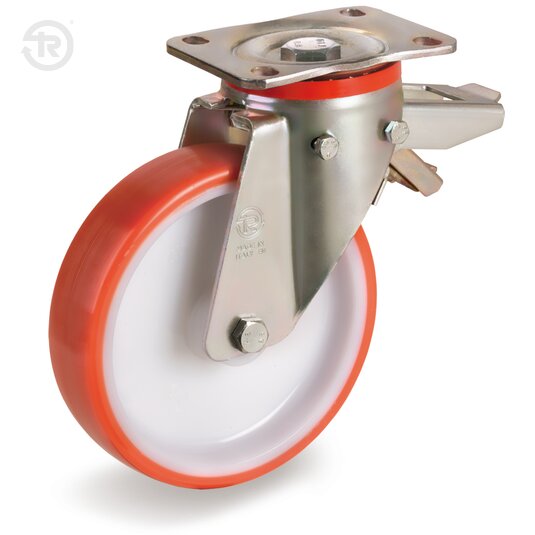

Swivel top plate bracket type P. The plate, the ball rice ring and the fork are made of pressed yellow galvanised steel plate; swivel actions: double ball greased race with dust protection seal made of polyamide 6. The king pin is made of steel bolt 8.8 and nut series. The adjustable brake locks wheel and top plate rotation.
Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
Para cada carga e diâmetro, a tabela indica a força (em daN) necessária para empurrar ou puxar uma única roda a uma velocidade constante de 4 km/h em piso liso. Para a movimentação manual de um carrinho de 4 rodas, escolher diâmetros que resultem em valores 5 daN; para movimentação frequente, escolher valores 3 daN.
| Diâmetro | largura | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 0 | 4,5 | |||||||
| 100 | 0 | 2,2 | 4,5 | ||||||
| 125 | 0 | 1,2 | 2,2 | 4 | |||||
| 150 | 45 | <1 | 2 | 3,2 | 4,5 | 6 | 9 | ||
| 150 | 35 | <1 | 2 | 3,2 | 5 | ||||
| 200 | 0 | <1 | <1 | <1 | 2,5 | 3 | 4 | 5,5 | 7 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
