Wheels and castors for food processing industries
Wheels, castors and accessories for trolleys used in internal industrial logistics
Castors for scaffoldings
Rollers, drive wheels and stabilizer wheels for pallet trucks
Compact castors for AGVs, AMRs and robotic systems
Wheels and castors for waste bin containers
DADOS TÉCNICOS

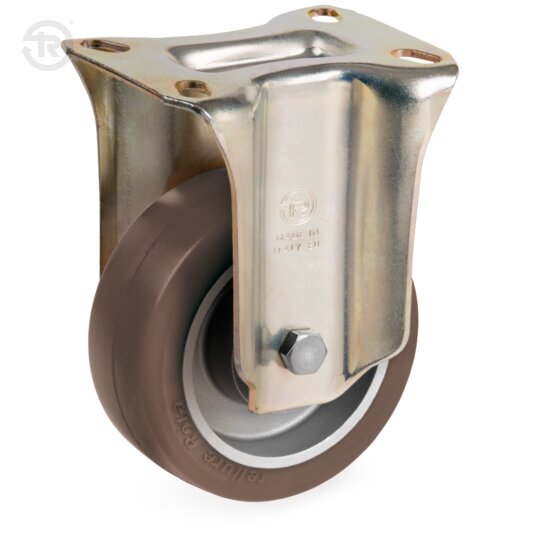

Wheels with medium-heavy duty brackets and brackets with hardened ball race grooves
TR-PowerHigh High polyurethane tread, high thickness; hardness 92+/-3 Shore A. Aluminium centre.
Fixed bracket type P. The fork is made of pressed yellow galvanised steel plate.
Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.
Suitable for all types of industrial floors, except unpaved; it easily overcomes obstacles.
Para cada carga e diâmetro, a tabela indica a força (em daN) necessária para empurrar ou puxar uma única roda a uma velocidade constante de 4 km/h em piso liso. Para a movimentação manual de um carrinho de 4 rodas, escolher diâmetros que resultem em valores 5 daN; para movimentação frequente, escolher valores 3 daN.
| Diâmetro | largura | 100 | 300 | 400 | 500 | 650 | 800 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | 2,3 | 5,3 | ||||
| 125 | 0 | 2,2 | 5 | ||||
| 160 | 0 | 1,6 | 4,3 | 5,4 | 6,5 | 10 | |
| 200 | 0 | 1 | 3,8 | 5 | 6,1 | 8 | 11 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
