DADOS TÉCNICOS
Revestimento de poliuretano TR-Roll, núcleo de alumínio

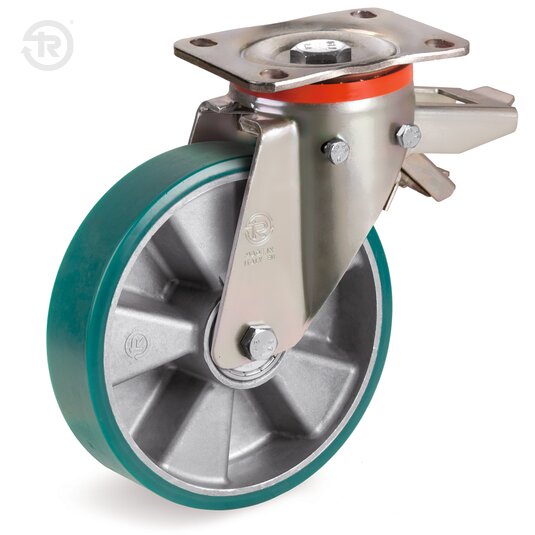

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast aluminium.
Swivel top plate bracket type P. The plate, the ball rice ring and the fork are made of pressed yellow galvanised steel plate; swivel actions: double ball greased race with dust protection seal made of polyamide 6. The king pin is made of steel bolt 8.8 and nut series. The adjustable brake locks wheel and top plate rotation.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for tiles, cement-resin, asphalt and expanded metal. Not suitable on unpaved floors and/or in case large obstacles are present.
Para cada carga e diâmetro, a tabela indica a força (em daN) necessária para empurrar ou puxar uma única roda a uma velocidade constante de 4 km/h em piso liso. Para a movimentação manual de um carrinho de 4 rodas, escolher diâmetros que resultem em valores 5 daN; para movimentação frequente, escolher valores 3 daN.
| Diâmetro | largura | 150 | 250 | 350 | 450 | 550 | 700 |
|---|---|---|---|---|---|---|---|
| 80 | 0 | 2,5 | |||||
| 100 | 0 | 2,2 | |||||
| 125 | 0 | 1 | 2,3 | ||||
| 150 | 0 | <1 | 1,7 | 2,7 | 3,8 | ||
| 160 | 0 | <1 | 1,4 | 2,3 | 3,5 | 4,9 | |
| 200 | 0 | <1 | 1,2 | 1,8 | 2,6 | 3,4 | 4,6 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
