Wheels and castors for food processing industries
Wheels, castors and accessories for trolleys used in internal industrial logistics
Castors for scaffoldings
Rollers, drive wheels and stabilizer wheels for pallet trucks
Compact castors for AGVs, AMRs and robotic systems
Wheels and castors for waste bin containers
ТЕХНИЧЕСКИЕ ДАННЫЕ
Покрытие из полиуретана TR-Roll, сердечник из чугуна

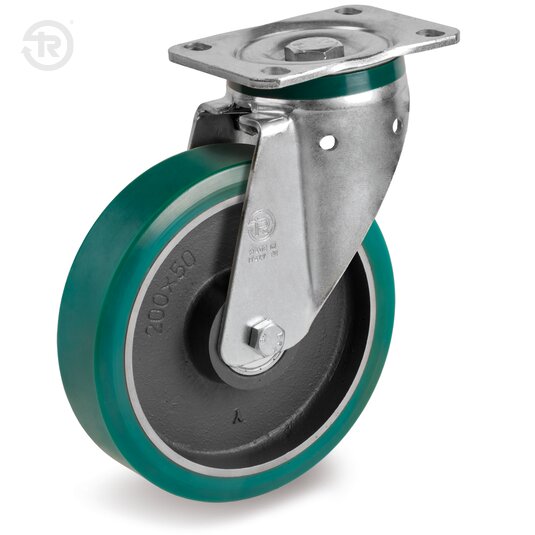

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast iron.
Swivel bracket made with: - Top Plate: yellow galvanised steel plate; Fork: yellow galvanised steel plate; Ball Race Ring: yellow galvanised steel plate; Dust seal: green polyamide 6; Swivel actions: double ball ring with grease lubrication; Ball race: tempered carbon steel; King pin: steel screw, class 8.8 and nut
Designed for industrial environments, even in in the presence of alcohols, glycols, hydrocarbons.Not recommended in areas with organic acids and mineral acids, base solutions and saturated steam. In case of use in aggressive environments, it is possible to use a protective lacker.
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.
Для любой нагрузки и диаметра в таблице указана сила (в даН), необходимая для толчка или тяги одного колеса с постоянной скоростью 4 км/ч по гладкому полу. Для ручного передвижения тележки на 4 колесах выбрать диаметр, соответствующий значениям 5 даН, для частого передвижения выбрать значения 3 даН.
| Диаметр | ширина | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 |
|---|---|---|---|---|---|---|---|---|---|
| 200 | 80 | <1 | 2 | 3,5 | 5,5 | ||||
| 200 | 50 | <1 | 2,5 | 4 | 6 | ||||
| 250 | 0 | <1 | 1,5 | 3 | 5 | 7 | 9 | ||
| 300 | 0 | <1 | 1 | 2,5 | 4,5 | 6 | 8 | 10 | |
| 400 | 0 | <1 | <1 | 1 | 3 | 5,5 | 7 | 8 | 10 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
