ТЕХНИЧЕСКИЕ ДАННЫЕ

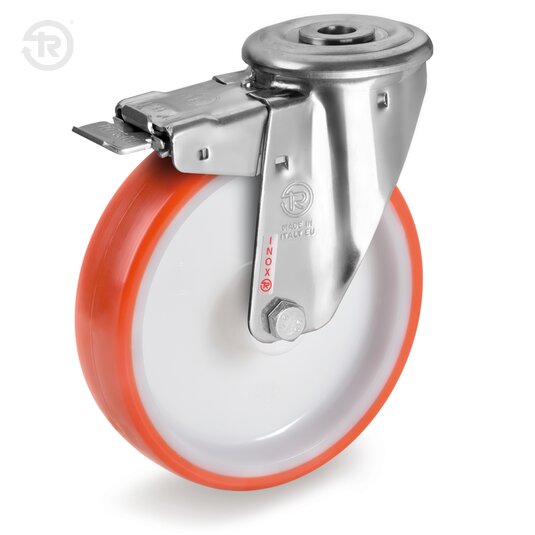

Колёса с нержавеющими опорами для лёгких нагрузок
Injection polyurethane tread, hardness 55 Shore D. Polyammide 6 centre.
Swivel bracket type NLX. The plate,ball race ring and fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of stainless steel. The king pin is integral with top plate and duly rivetted. The front brake is necessary to lock wheel and top plate rotation.
Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
Для любой нагрузки и диаметра в таблице указана сила (в даН), необходимая для толчка или тяги одного колеса с постоянной скоростью 4 км/ч по гладкому полу. Для ручного передвижения тележки на 4 колесах выбрать диаметр, соответствующий значениям 5 даН, для частого передвижения выбрать значения 3 даН.
| Диаметр | ширина | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 0 | 4,5 | |||||||
| 100 | 0 | 2,2 | 4,5 | ||||||
| 125 | 0 | 1,2 | 2,2 | 4 | |||||
| 150 | 45 | <1 | 2 | 3,2 | 4,5 | 6 | 9 | ||
| 150 | 35 | <1 | 2 | 3,2 | 5 | ||||
| 200 | 0 | <1 | <1 | <1 | 2,5 | 3 | 4 | 5,5 | 7 |
