ТЕХНИЧЕСКИЕ ДАННЫЕ

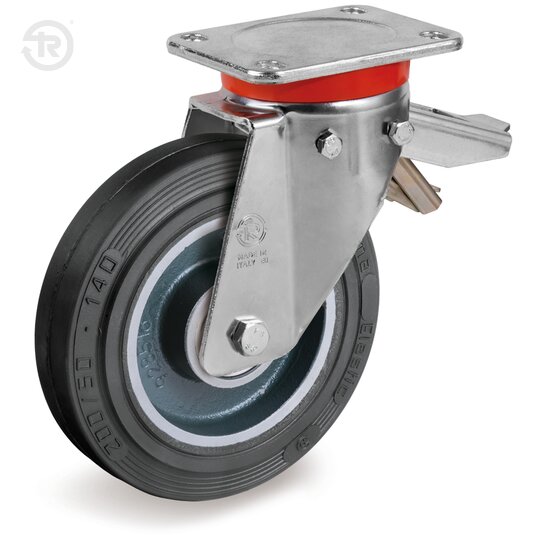

Sigma Elastic rubber tread; hardness 70 +/-3 Shore A. Cast iron centre.
Swivel top plate bracket type EP. The plate and fork are made of forged steel zinc plated finish; swivel actions: taper roller bearing and precision thrust bearing with dust protection made of polyethilene. The king pin is integral with turned and threaded top-plate and fixed with self-locking nut. The adjustable brake locks wheel and top plate rotation.
Industrial environments, even in presence of humidity. Not suitable in presence of organic, aromatic solvents, chlorinated substances and hydrocarbons.
Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor.
Для любой нагрузки и диаметра в таблице указана сила (в даН), необходимая для толчка или тяги одного колеса с постоянной скоростью 4 км/ч по гладкому полу. Для ручного передвижения тележки на 4 колесах выбрать диаметр, соответствующий значениям 5 даН, для частого передвижения выбрать значения 3 даН.
| Диаметр | ширина | 100 | 200 | 300 | 400 | 500 | 700 |
|---|---|---|---|---|---|---|---|
| 125 | 0 | 1,4 | 3,7 | 7 | |||
| 150 | 0 | 1 | 3 | 5,8 | 9,5 | ||
| 200 | 50 | <1 | 1,8 | 4 | 7,1 | 11 | |
| 200 | 75 | <1 | 1,8 | 3,3 | 5 | 7 | 12 |
| 250 | 0 | <1 | 1,5 | 2,7 | 4,1 | 6 | 10,3 |
