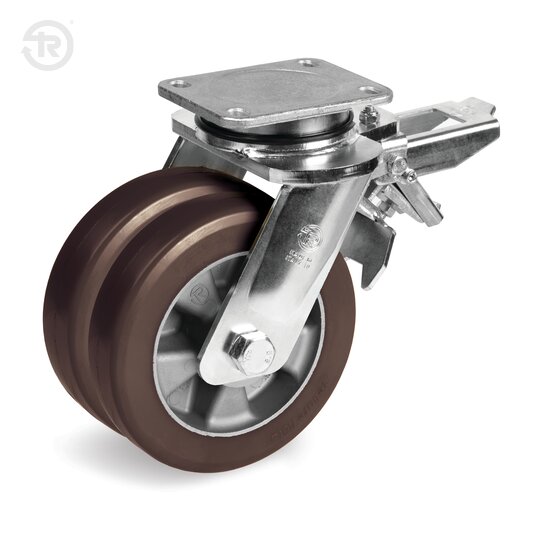

TR-58HT-EEGMHD
Wheels with twin electrowelded brackets

TR-PowerHigh polyurethane tread, high thickness, aluminium centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

TR-PowerHigh polyurethane tread, high thickness; hardness 92+/-3 Shore A. Aluminium centre.

Bracket description

Bracket description

Swivel top plate bracket, with a plate made of forged steel with integrated pin, a fork with two drawn sides electrowelded to the flange, swivel actions made of an axial ball bearing an a taper roller bearing, lubricator and nut anti-loosening system. Rear adjustable brake: adjustment of the brake setting alters product braking efficiency.

Environments of use

Environments of use

Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.

giallo
Weak acids
rosso
Strong acids
giallo
Water
verde
Alcohol
giallo
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of industrial floors, except unpaved; it easily overcomes obstacles.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een ​​enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

DiameterWidth100300400500650800
10002,35,3
12502,25
16001,64,35,46,510
200013,856,1811
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
