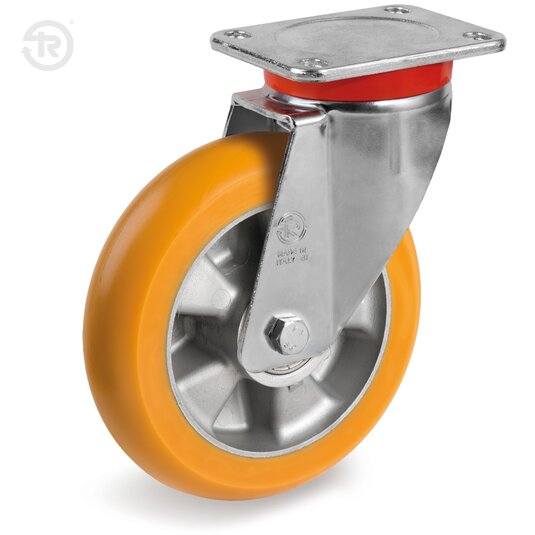

TR-65ER-EP
Wheels with extra heavy duty brackets

TR polyurethane tread, high thickness, ergonomic round profile, aluminium centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

TR polyurethane wheels with ergonomic round profile, hardness 92+/-3 Shore A; core made of cast aluminium.

Bracket description

Bracket description

Swivel top plate bracket type EP. The plate, the ball rice ring and fork are made of forged steel zinc plated finish; swivel actions: taper roller bearing and precision thrust bearing with dust protection made of polyethilene. The king pin is integral with turned and threaded top-plate and fixed with self-locking nut.

Environments of use

Environments of use

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

giallo
Weak acids
rosso
Strong acids
giallo
Water
verde
Alcohol
giallo
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of industrial floors, except unpaved; it easily overcomes obstacles.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een ​​enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

DiameterWidth100250400500650800
12502,557
16001,84,76711
20001,24,55,46,2912
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
