TECHNICAL DATA

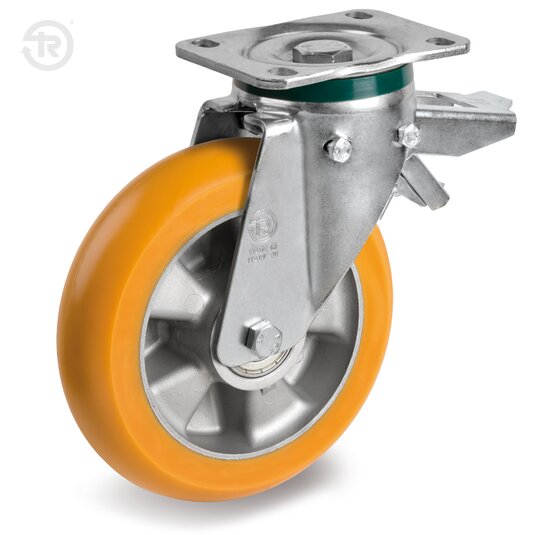

TR polyurethane wheels with ergonomic round profile, hardness 92+/-3 Shore A; core made of cast aluminium.
Swivel bracket made with: - Top Plate: yellow galvanised steel plate; Fork: yellow galvanised steel plate; Ball Race Ring: yellow galvanised steel plate; Dust seal: green polyamide 6; Swivel actions: double ball ring with grease lubrication; Ball race: tempered carbon steel; King pin: steel screw, class 8.8 and nut. Adjustable rear brake.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for all types of industrial floors, except unpaved; it easily overcomes obstacles.
Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.
| Diameter | Width | 100 | 250 | 400 | 500 | 650 | 800 |
|---|---|---|---|---|---|---|---|
| 125 | 0 | 2,5 | 5 | 7 | |||
| 160 | 0 | 1,8 | 4,7 | 6 | 7 | 11 | |
| 200 | 0 | 1,2 | 4,5 | 5,4 | 6,2 | 9 | 12 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
