TECHNICAL DATA

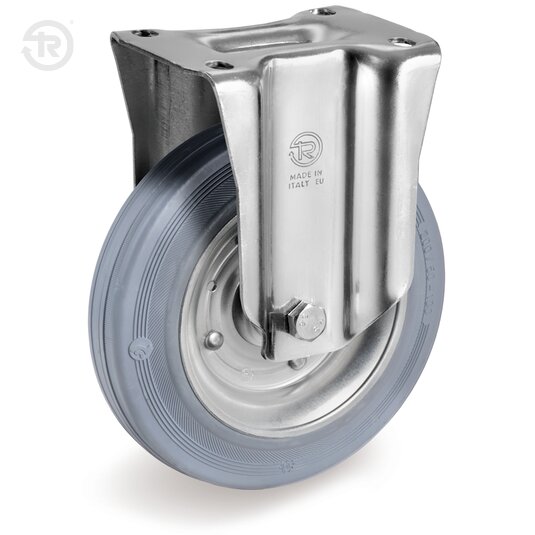

Standard non-marking rubber tread; hardness 80 Shore A. Centre made of two riveted galvanized pressed steel discs.
Fixed bracket type NL. The fork is made of pressed steel zinc plated.
Suitable for industrial and institutional environments, also in presence of humidity and oils. Not suitable in presence of aggressive chemical agents.
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 50 | 100 | 150 | 200 | 230 |
|---|---|---|---|---|---|---|
| 80 | 0 | 5 | ||||
| 100 | 0 | 3 | ||||
| 125 | 0 | 2,5 | 6 | |||
| 140 | 0 | 2,2 | 5,5 | 9 | ||
| 150 | 0 | 2 | 5 | 8,5 | ||
| 160 | 0 | 1,5 | 3,5 | 7,5 | ||
| 200 | 0 | 1 | 3 | 5,5 | 8,5 | 11 |
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
