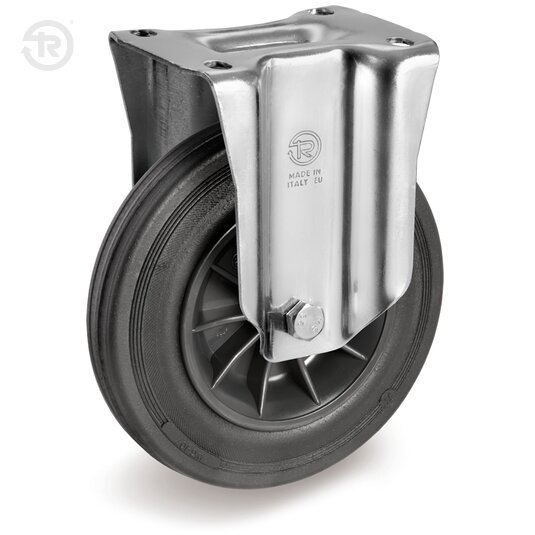

TR-52-NL
Wheels with standard duty brackets

Rubber tread, polypropylene centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Standard rubber tread, hardness 80 Shore A. Polypropylene centre.

Bracket description

Bracket description

Fixed bracket type NL. The fork is made of pressed steel zinc plated.

Environments of use

Environments of use

Suitable for industrial and institutional environments, also in presence of humidity and weak acids. Not suitable in presence of strong acids, bases and solvents.

verde
Weak acids
rosso
Strong acids
verde
Water
giallo
Alcohol
giallo
Weak bases
giallo
Strong bases
giallo
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth50100150200250300
8005
10002,5
12502,26
140025,5
150025
16001,53,57,5
180013,26
2000135,58,5
250012,2468,211
Accessories

Footguard for NL-M-P-PT brackets

Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times

Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
