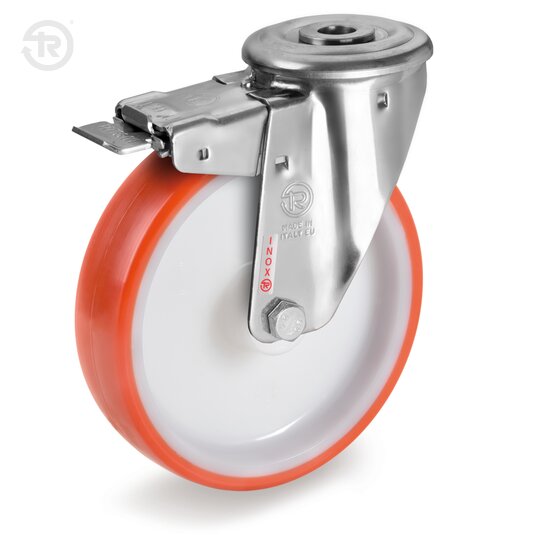

TR-60-NLX
Wheels with standard duty stainless steel brackets

Thermoplastic polyurethane tread, polyamide 6 centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Injection polyurethane tread, hardness 55 Shore D. Polyammide 6 centre.

Bracket description

Bracket description

Swivel bracket type NLX. The plate,ball race ring and fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of stainless steel. The king pin is integral with top plate and duly rivetted. The front brake is necessary to lock wheel and top plate rotation.

Environments of use

Environments of use

Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids.

verde
Weak acids
rosso
Strong acids
verde
Water
verde
Alcohol
giallo
Weak bases
giallo
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een ​​enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

DiameterWidth100150200250300350400450
8004,5
10002,24,5
12501,22,24
15045<123,24,569
15035<123,25
2000<1<1<12,5345,57
