TECHNICAL DATA

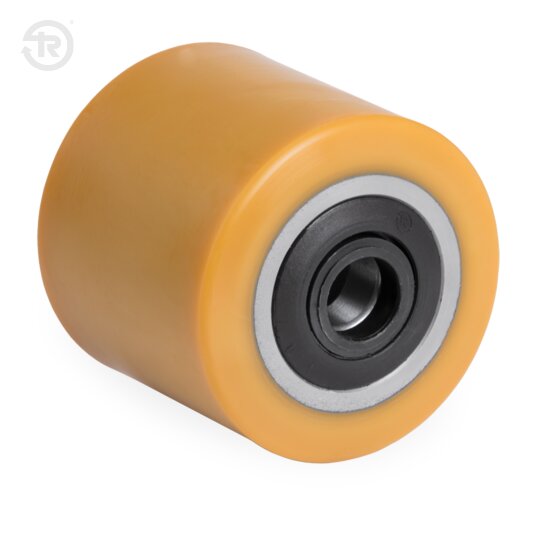

TR polyurethane tread; hardness 92+/-2 Shore A. Weldless steel centre with labyrinths, protective plastic-rings, press-fitted in front of the ball bearings.
Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) required to push or pull a single wheel at a constant speed of 4 km/h on a smooth floor. For manual handling of a 4-wheel trolley, choose values < 5 daN; for frequent handling, choose values < 3 daN.
| Diameter | Width | 100 | 200 | 300 | 500 | 600 | 800 | 1000 |
|---|---|---|---|---|---|---|---|---|
| 80 | 90 | 1,3 | 2,7 | 4,4 | 8,2 | 10,4 | 15,3 | |
| 80 | 70 | 1,3 | 3 | 5,5 | 10,3 | 13,5 | ||
| 82 | 70 | 1 | 2,6 | 5,4 | 11,2 | 15,3 | ||
| 82 | 85 | 1 | 2,6 | 5 | 10,5 | 13,9 | 22 | |
| 82 | 100 | <1 | <1 | 2,3 | 6,7 | 9,8 | 17,8 | 28 |
| 82 | 90 | <1 | 2,3 | 4,2 | 9 | 12,2 | 20 | |
| 85 | 40 | 1,4 | 5,3 | 10,4 | ||||
| 85 | 70 | <1 | 1,9 | 5,2 | 10,9 | 15,5 | ||
| 85 | 80 | <1 | 1,6 | 4,5 | 9,5 | 13,6 | 24 | |
| 85 | 100 | <1 | <1 | 2 | 5,8 | 9,3 | 17 | 27 |
| 85 | 90 | <1 | <1 | 3,5 | 7,9 | 11,4 | 20,5 |
