TR-23-W
Non-marking rubber wheels

Without bracket, electrolytically galvanised steel plate discs, with plain bore, with roller bearing



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

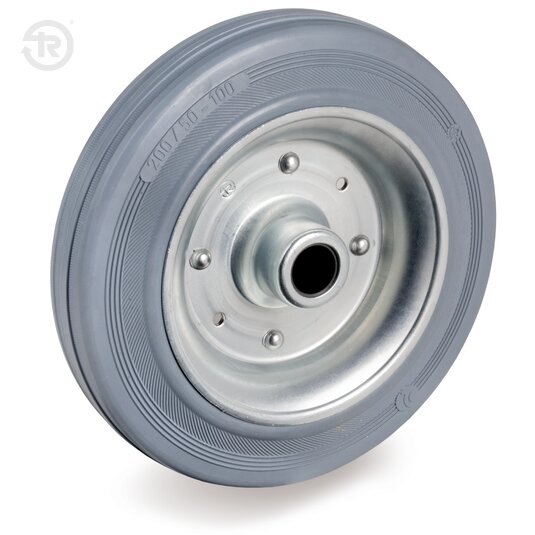

Standard non-marking rubber tread; hardness 80 Shore A. Centre made of two riveted galvanized pressed steel discs.

Environments of use

Environments of use

Suitable for industrial and institutional environments, also in presence of humidity and oils. Not suitable in presence of aggressive chemical agents.

giallo
Weak acids
rosso
Strong acids
verde
Water
giallo
Alcohol
giallo
Weak bases
giallo
Strong bases
giallo
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth50100150200230
8005
10003
12502,56
14002,25,59
1500258,5
16001,53,57,5
2000135,58,511
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
