TECHNICAL DATA

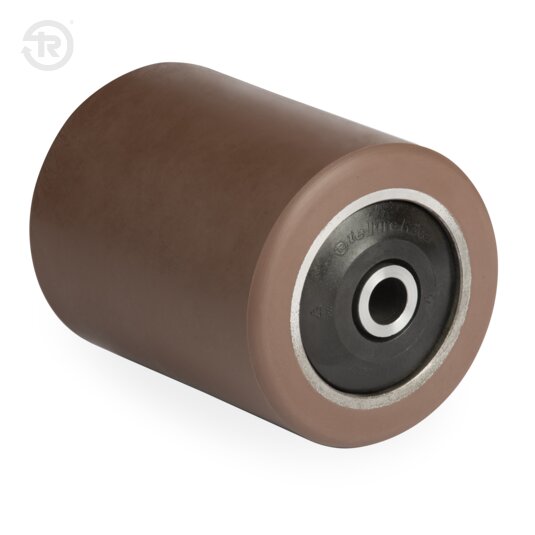

TR-PowerHigh polyurethane tread; hardness 92+/-3 Shore A. Weldless steel centre with labyrinths and axel tube, protective plastic-rings with integrated lip, press-fitted in front of the ball bearings.
Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 200 | 300 | 400 | 500 | 600 | 800 |
|---|---|---|---|---|---|---|---|---|
| 85 | 110 | <1 | 1,5 | 2 | 3 | 4,2 | 5,7 | 10,5 |
| 85 | 105 | <1 | 1,6 | 2,2 | 3,2 | 4,5 | 6 | 10 |
| 85 | 100 | <1 | 1,6 | 2,2 | 3,2 | 4,5 | 6 | 10 |
| 85 | 90 | <1 | 1,7 | 2,4 | 3,5 | 4,8 | 6,4 | |
| 85 | 85 | <1 | 1,8 | 2,6 | 3,8 | 5 | 7,2 | |
| 85 | 80 | <1 | 1,8 | 2,6 | 3,8 | 5 | 7,2 | |
| 85 | 75 | <1 | 1,9 | 2,9 | 4 | 6 | ||
| 85 | 70 | <1 | 1,9 | 2,9 | 4 | 6 | ||
| 85 | 60 | <1 | 2,2 | 3,6 | 5 |
