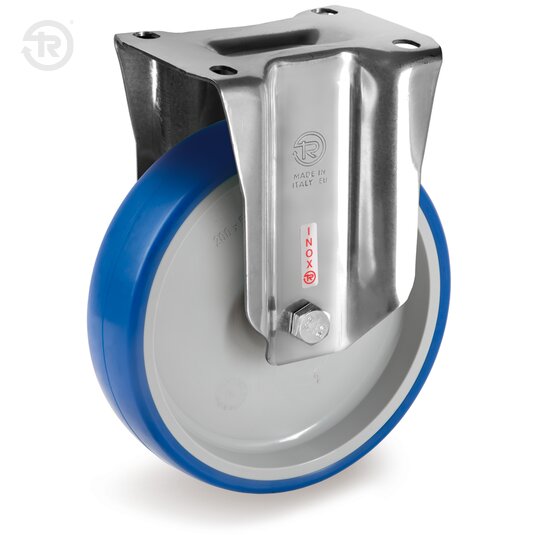

TR-61-NLX
Wheels with stainless steel standard duty brackets

Soft thermoplastic polyurethane tread, polyamide 6 centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Injection polyurethane tread, hardness 85 Shore A. Thermoplastic centre.

Bracket description

Bracket description

Fixed bracket type NLX. The fork is made of AISI 304 stainless steel.

Environments of use

Environments of use

Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids.

verde
Weak acids
rosso
Strong acids
verde
Water
verde
Alcohol
giallo
Weak bases
giallo
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth50100150200250300
8003,4
10001,54
125012,54
15045<11,52,53,9
15035<11,834,5
2000<1<11,62,53,85
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
