TR-62-EP

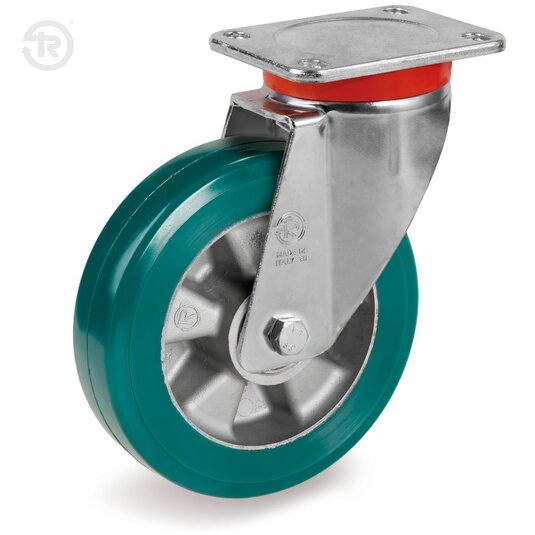

Wheels with extra heavy duty brackets

TR-Roll polyurethane tread, high thickness, aluminium centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast aluminium.

Bracket description

Bracket description

Swivel top plate bracket type EP. The plate and fork are made of forged steel zinc plated finish; swivel actions: taper roller bearing and precision thrust bearing with dust protection made of polyethilene. The king pin is integral with turned and threaded top-plate and fixed with self-locking nut.

Environments of use

Environments of use

Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.

giallo
Weak acids
rosso
Strong acids
giallo
Water
verde
Alcohol
giallo
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth150250350450550700
10002,54
12501,83,25
16001,42,83,54,25
1800<123,24,24,7
2000<11,52,83,74,35
2500<11,32,53,74,35
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
