TECHNICAL DATA

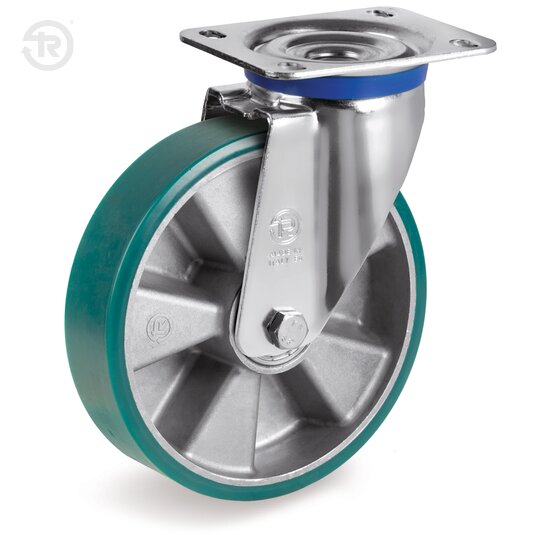

TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast aluminium.
Swivel top plate bracket. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. . The king pin is integral with the top plate and duly rivetted.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for tiles, cement-resin, asphalt and expanded metal. Not suitable on unpaved floors and/or in case large obstacles are present.
Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.
| Diameter | Width | 150 | 250 | 350 | 450 | 550 | 700 |
|---|---|---|---|---|---|---|---|
| 80 | 0 | 2,5 | |||||
| 100 | 0 | 2,2 | |||||
| 125 | 0 | 1 | 2,3 | ||||
| 150 | 0 | <1 | 1,7 | 2,7 | 3,8 | ||
| 160 | 0 | <1 | 1,4 | 2,3 | 3,5 | 4,9 | |
| 200 | 0 | <1 | 1,2 | 1,8 | 2,6 | 3,4 | 4,6 |
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
