Wheels and castors for food processing industries
Wheels, castors and accessories for trolleys used in internal industrial logistics
Castors for scaffoldings
Rollers, drive wheels and stabilizer wheels for pallet trucks
Compact castors for AGVs, AMRs and robotic systems
TECHNICAL DATA

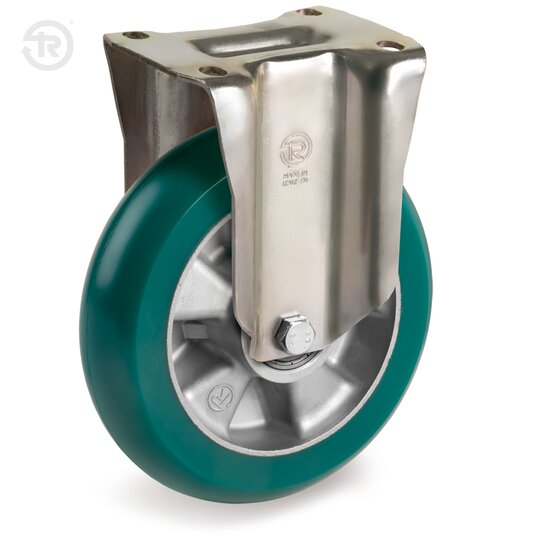

TR-ROLL polyurethane wheels with ergonomic round profile, hardness 75 Shore A; core made of cast aluminium.
Fixed bracket type P. The fork is made of pressed yellow galvanised steel plate.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 150 | 250 | 350 | 450 | 550 | 700 |
|---|---|---|---|---|---|---|---|
| 125 | 50 | <1 | 1 | 2 | 3 | ||
| 125 | 40 | <1 | 1,5 | 5 | |||
| 160 | 0 | <1 | 1 | 2 | 3 | 3,5 | |
| 200 | 0 | <1 | <1 | 1 | 2 | 3 | 4 |
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
