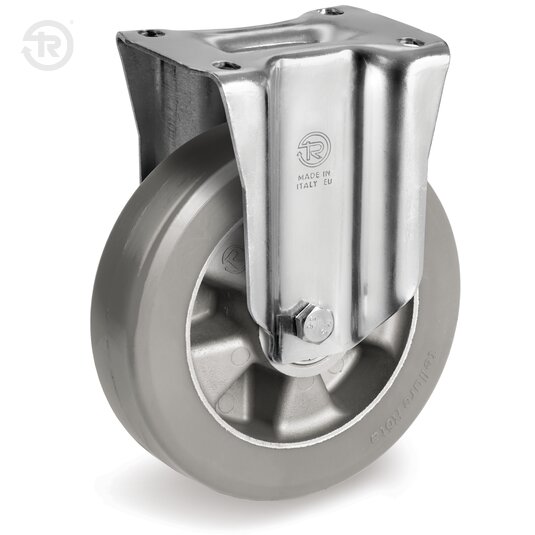

TR-62ESD-NL-M
Wheels with standard duty brackets and medium duty brackets

ESD TR-Roll polyurethane tread, high thickness, aluminuim centre



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

Tyre: very thick ESD TR-Roll polyurethane, with electric resistance values 10^9 Ohm (=1GOhm) lightgrey non-marking colour, hardness 75 Shore A, with excellent rolling resistance and elasticity and good resistance to wear and tear. Centre: made of cast aluminium.

Bracket description

Bracket description

The fork is made of pressed steel zinc plated.

Environments of use

Environments of use

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

giallo
Weak acids
rosso
Strong acids
giallo
Water
verde
Alcohol
giallo
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors.

asfalto
Asphalt
cemento-resine
Cement Resin
grigliato
Expanded Metal
con-ostacoli
With Obstacles
piastrelle
Tile
sterrato
Not Paved
con-trucioli
With Chips
Force required to push or tow a wheel

Force required to push or tow a wheel

For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.

DiameterWidth100200300400500550
1000<12
1250<11,73,1
1600<11,62,84,4
2000<11,22,33,75,26,1
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
