TECHNICAL DATA

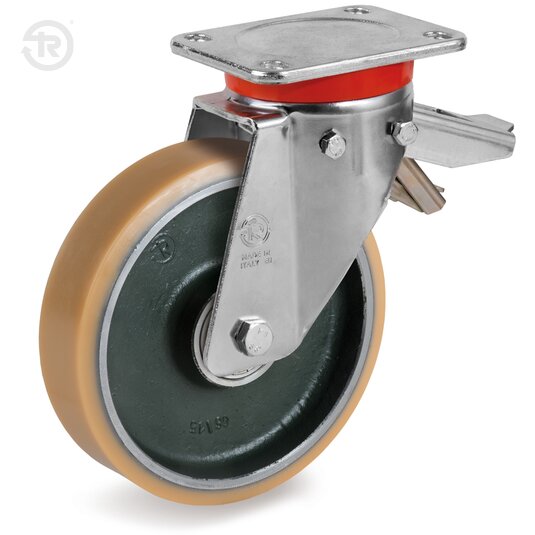

Vulkollan polyurethane tread; hardness 93 +/-2 Shore A.
Swivel top plate bracket type EP. The plate and fork are made of forged steel zinc plated finish; swivel actions: taper roller bearing and precision thrust bearing with dust protection made of polyethilene. The king pin is integral with turned and threaded top-plate and fixed with self-locking nut. The adjustable brake locks wheel and top plate rotation.
Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 150 | 300 | 450 | 600 | 1000 | 1500 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | 4 | |||||
| 125 | 0 | 3,3 | 6,7 | ||||
| 150 | 0 | 2,4 | 4,8 | 7,2 | 9,6 | ||
| 175 | 0 | 2,2 | 4,5 | 6,8 | 9 | ||
| 200 | 0 | 1,7 | 3,5 | 5,5 | 7,6 | 14,2 | |
| 250 | 0 | 1,2 | 2,5 | 4 | 5,6 | 10,5 | 18 |
