Wheels and castors for food processing industries
Wheels, castors and accessories for trolleys used in internal industrial logistics
Castors for scaffoldings
Rollers, drive wheels and stabilizer wheels for pallet trucks
Compact castors for AGVs, AMRs and robotic systems
TECHNICAL DATA
Vulkollan polyurethane tread; hardness 93 +/-2 Shore A.

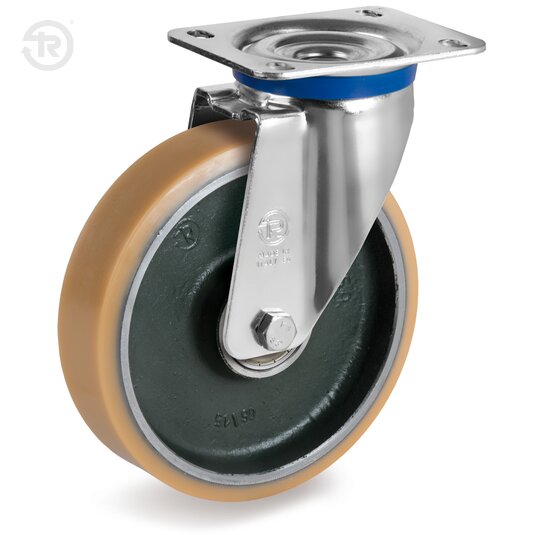

Swivel top plate bracket. The plate, the ball race ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protectionseal made of polyethilene. The king pin is integral with the top plate and duly rivetted.
Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 150 | 300 | 450 | 600 | 1000 | 1500 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | 4 | |||||
| 125 | 0 | 3,3 | 6,7 | ||||
| 150 | 0 | 2,4 | 4,8 | 7,2 | 9,6 | ||
| 175 | 0 | 2,2 | 4,5 | 6,8 | 9 | ||
| 200 | 0 | 1,7 | 3,5 | 5,5 | 7,6 | 14,2 | |
| 250 | 0 | 1,2 | 2,5 | 4 | 5,6 | 10,5 | 18 |
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
