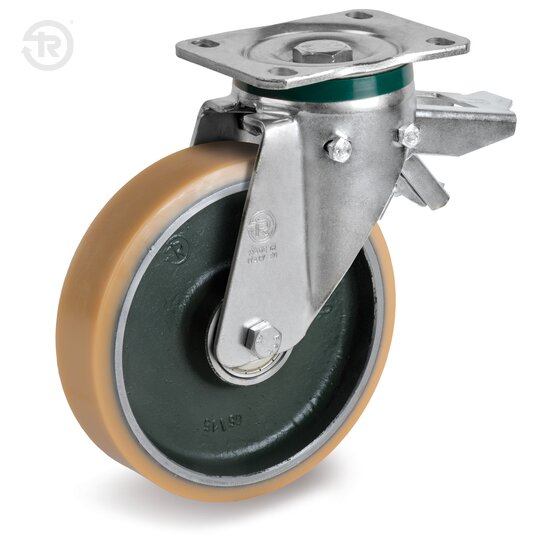

TECHNICAL DATA
Vulkollan polyurethane tread; hardness 93 +/-2 Shore A.
Swivel bracket made with: - Top Plate: yellow galvanised steel plate; Fork: yellow galvanised steel plate; Ball Race Ring: yellow galvanised steel plate; Dust seal: green polyamide 6; Swivel actions: double ball ring with grease lubrication; Ball race: tempered carbon steel; King pin: steel screw, class 8.8 and nut. Adjustable rear brake.
Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 150 | 300 | 450 | 600 | 1000 | 1500 |
|---|---|---|---|---|---|---|---|
| 100 | 0 | 4 | |||||
| 125 | 0 | 3,3 | 6,7 | ||||
| 150 | 0 | 2,4 | 4,8 | 7,2 | 9,6 | ||
| 175 | 0 | 2,2 | 4,5 | 6,8 | 9 | ||
| 200 | 0 | 1,7 | 3,5 | 5,5 | 7,6 | 14,2 | |
| 250 | 0 | 1,2 | 2,5 | 4 | 5,6 | 10,5 | 18 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
Tellure Rôta’s footguard is specifically designed to prevent the operator’s foot crushing when handling trolleys or machines. Due to the fixed nature of this device, in fact, safety while manoeuvring carts is ensured at all times
