TECHNICAL DATA

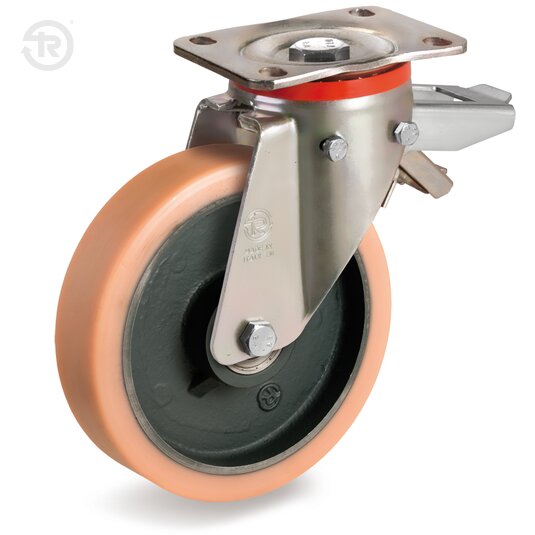

Vulkollan polyurethane tread; hardness 92 +/- 3 Shore A. Cast iron centre.
Swivel top plate bracket type P. The plate, the ball race ring and the fork are made of pressed yellow galvanised steel plate; swivel actions: double ball greased race with dust protection seal made of polyamide 6. The king pin is made of steel bolt 8.8 and nut series. The adjustable brake locks wheel and top plate rotation.
Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.
| Diameter | Width | 150 | 300 | 450 | 600 | 1000 | 1500 | 2000 |
|---|---|---|---|---|---|---|---|---|
| 80 | 0 | 4,5 | 11 | |||||
| 100 | 0 | 3,8 | 7,7 | |||||
| 125 | 38 | 3,5 | 7 | 11,5 | ||||
| 125 | 50 | 3,3 | 6,5 | 11 | ||||
| 150 | 50 | 2,5 | 5,2 | 8,6 | 12,6 | |||
| 160 | 50 | 2,3 | 5 | 8,3 | 12 | |||
| 180 | 50 | 2 | 4,1 | 6,8 | 9,7 | |||
| 200 | 50 | 1,7 | 3,8 | 6 | 8,5 | 16 | ||
| 200 | 80 | 1,3 | 3,5 | 5 | 6,7 | 11,5 | 17 | |
| 250 | 60 | 1 | 3 | 4,7 | 6,3 | 10,9 | 16 | |
| 250 | 80 | <1 | 2,5 | 4,5 | 6 | 10,3 | 15,5 | |
| 300 | 60 | <1 | 2 | 4 | 5,5 | 9,6 | 15 | |
| 300 | 80 | <1 | 1,5 | 3,5 | 5 | 8,6 | 13 | 16 |
Directional lock for brackets NL-P-PT, diameters 125-200 mm (plate dimensions 140x110 mm).
