TR-64-FP
TR polyurethane wheels

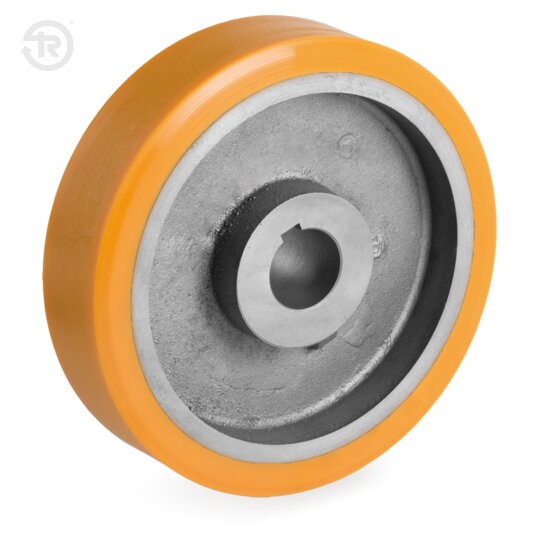

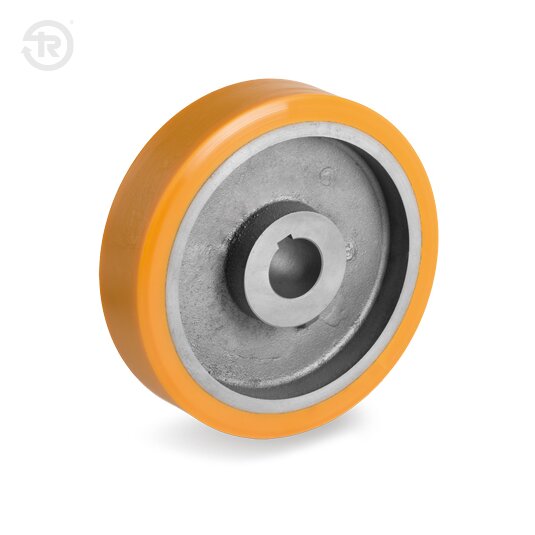

Without bracket, cast iron centre, with plain bore and key housing



loading

Technical specifications

Scroll horizontally
Wheel description

Wheel description

"TR" polyurethane, hardness 92 Shore A, hub with key housing. The standard reference used by TellureRota for the construction of the key housing is UNI EN 6604-69; therefore, the tolerance on the width of the key housing is JS9.

Environments of use

Environments of use

Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.

giallo
Weak acids
rosso
Strong acids
giallo
Water
verde
Alcohol
giallo
Weak bases
rosso
Strong bases
verde
Hydrocarbons
rosso
Solvents
Floors

Floors

Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.

no asfalto
Asphalt
cemento-resine
Cement Resin
no grigliato
Expanded Metal
no con-ostacoli
With Obstacles
piastrelle
Tile
no sterrato
Not Paved
no con-trucioli
With Chips
Force required to push or tow a wheel

Vereiste kracht om een wiel te duwen of trekken

Voor elke belasting en diameter geeft de tabel de kracht (in daN) weer die nodig is om een ​​enkel wiel met een constante snelheid van 4 km/u over een gladde vloer te duwen of trekken. Voor handmatige afhandeling van een trolley met 4 wielen bevelen we diameter met een waarde van 5 daN aan; voor frequente hantering bevelen we diameters met een waarde van 3 daN aan.

DiameterWidth1503004506001000150020002800
8004,511
10003,87,7
125603,36,51114
125383,5711,5
125503,36,511
1506024811
150801,83,5610,518
150502,55,28,612,6
160502,358,312
1805024,16,89,7
200501,73,868,516
200801,33,556,711,517
25060134,76,310,916
25080<12,54,5610,315,5
30060<1245,59,615
30080<11,53,558,61316
400100<1<123,26,8111321
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
