TECHNICAL DATA
TR polyurethane tread; hardness 92+/-3 Shore A. Aluminium centre.

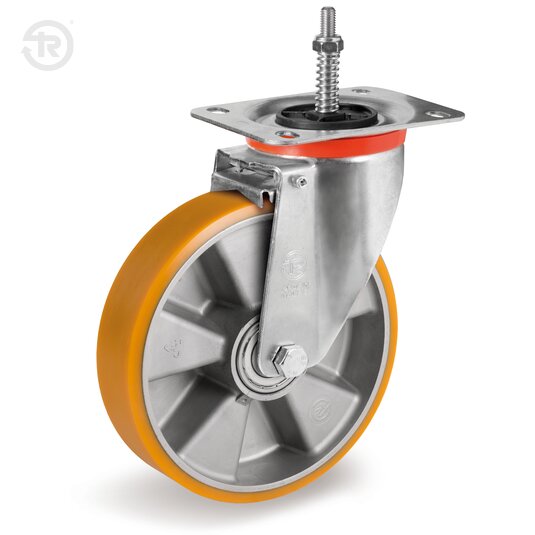

Swivel top plate bracket type NL with dead man brake
Swivel top plate bracket type NL. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted. The hexagonal brake system locks at the same time the rotation of two wheels. Dead man brake is normally on during non-operating conditions.
Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 200 | 350 | 500 | 650 | 850 |
|---|---|---|---|---|---|---|---|
| 80 | 0 | 2,8 | 5,8 | ||||
| 100 | 0 | 1,7 | 4,5 | ||||
| 125 | 0 | 1,4 | 3 | ||||
| 150 | 0 | <1 | 2 | 6 | 7,6 | 10,7 | |
| 160 | 0 | <1 | 1,8 | 5 | 7,4 | 10,5 | |
| 200 | 0 | <1 | 1,4 | 4,8 | 7,2 | 10,3 | 18 |
