TECHNICAL DATA

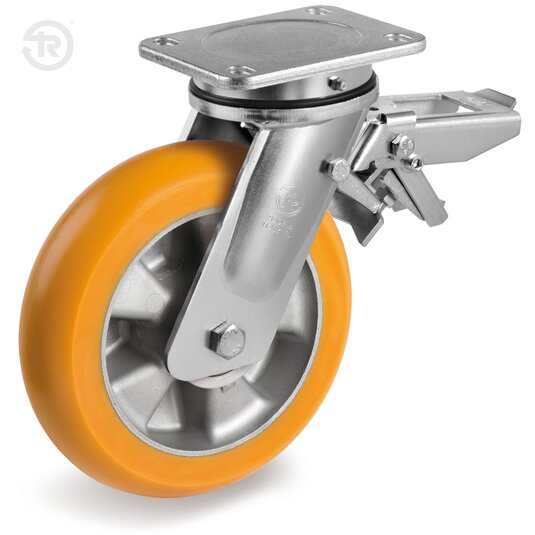

TR polyurethane wheels with ergonomic round profile, hardness 92+/-3 Shore A; core made of cast aluminium.
Swivel top plate bracket type EE MHD, with a plate made of forged steel with integrated pin, a fork with two drawn sides electrowelded to the flange, swivel actions made of an axial ball bearing an a taper roller bearing, lubricator and nut anti-loosening system. Rear adjustable brake: adjustment of the brake setting alters product braking efficiency.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for all types of industrial floors, except unpaved; it easily overcomes obstacles.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 100 | 250 | 400 | 500 | 650 | 800 |
|---|---|---|---|---|---|---|---|
| 125 | 0 | 2,5 | 5 | 7 | |||
| 160 | 0 | 1,8 | 4,7 | 6 | 7 | 11 | |
| 200 | 0 | 1,2 | 4,5 | 5,4 | 6,2 | 9 | 12 |
