TECHNICAL DATA

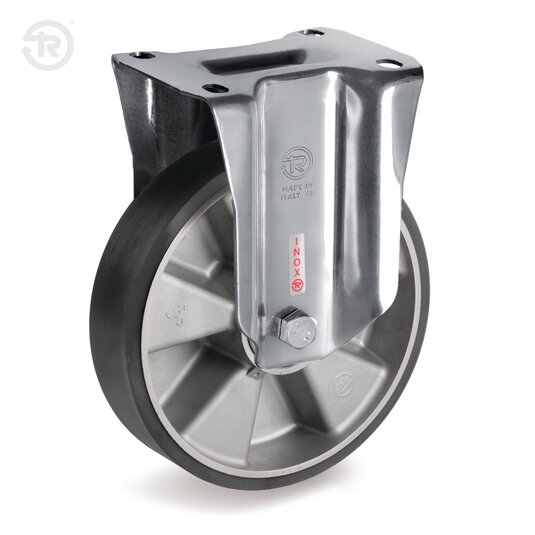

Tyre: ESD TR polyurethane, with electric resistance values 10^9 Ohm (≤1GOhm) dark-grey non-marking colour, hardness 90 Shore A, with excellent rolling resistance and elasticity and good resistance to wear and tear. Centre: made of cast aluminium.
Fixed bracket type NLX. The fork is made of AISI 304 stainless steel.
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.
For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values 5 daN, for frequent handling we recommend diameters with values 3 daN.
| Diameter | Width | 150 | 250 | 350 | 450 | 550 | 650 |
|---|---|---|---|---|---|---|---|
| 80 | 0 | 3,2 | |||||
| 100 | 0 | 2,3 | 5,2 | ||||
| 125 | 0 | 1,7 | 4,5 | 6,5 | |||
| 150 | 0 | 1,2 | 3,8 | 6 | 7 | 8 | |
| 160 | 0 | <1 | 3,3 | 5 | 6,5 | 8 | |
| 200 | 0 | <1 | 3 | 4,9 | 6 | 7,8 | 9 |
